APM(性能监控系统)与Javaagent以及Javassist
2025/1/3大约 4 分钟
APM(性能监控系统)与Javaagent以及Javassist
1 Apm(性能监控系统)
1.1 什么是APM
帮助理解系统行为、用于分析性能问题的工具，以便发生故障的时候，能够快速定位和解决问题，这就是APM系统，全称是（Application Performance Monitor，当然也有叫 Application Performance Management tools
1.2 Apm解决什么问题

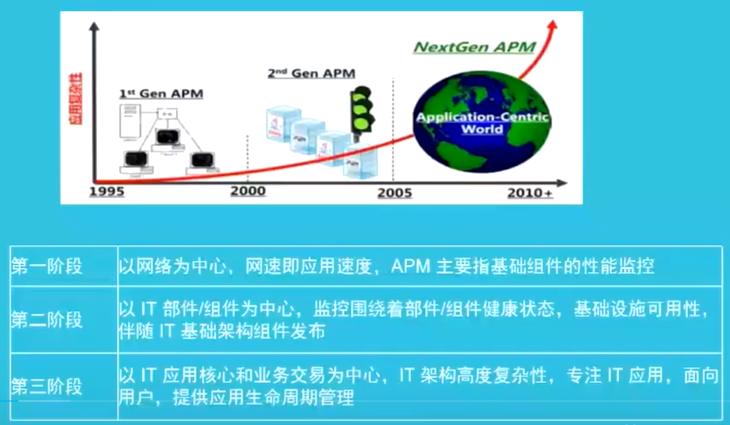

1.3 商用Apm发展历史
1.4 商用APM现状

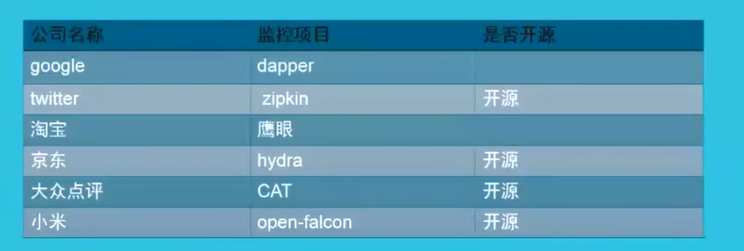

1.5 各大公司性能解决方案
1.6 调用链

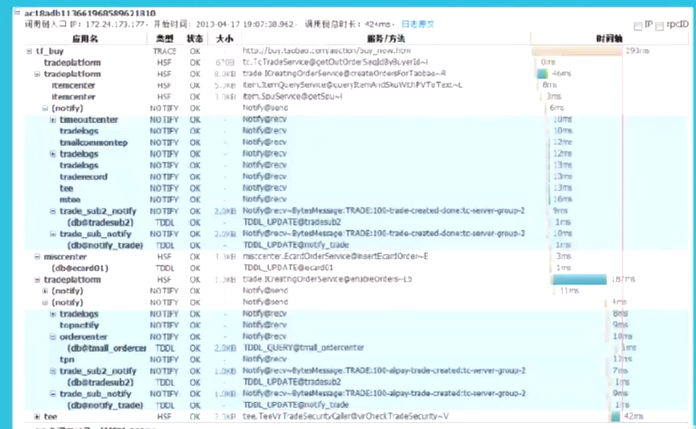

1.6.1 阿里鹰眼

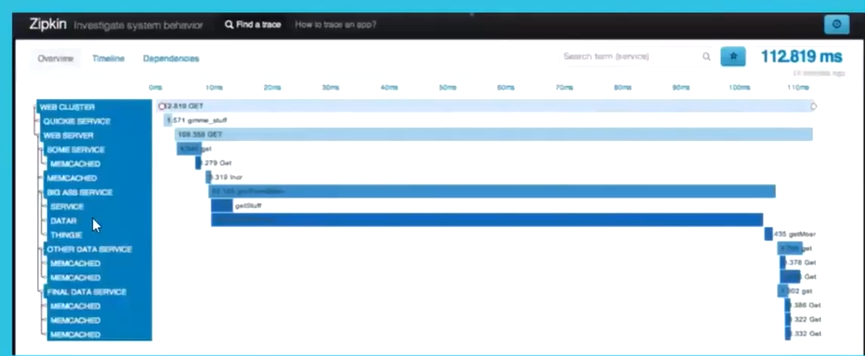

1.6.2 zipkin
1.6.3 小米open-Falcon
1.7 怎么为公司选择合适的性能解决方案

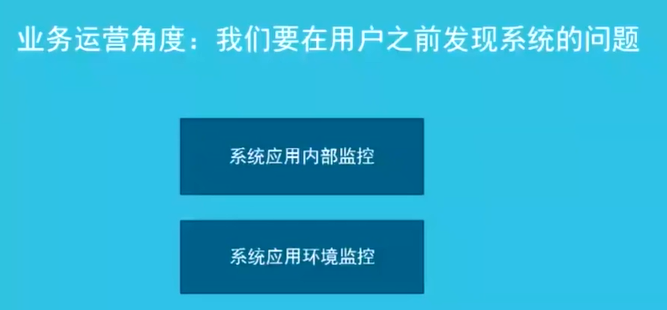

1.7.1 当前企业监控目标与需求

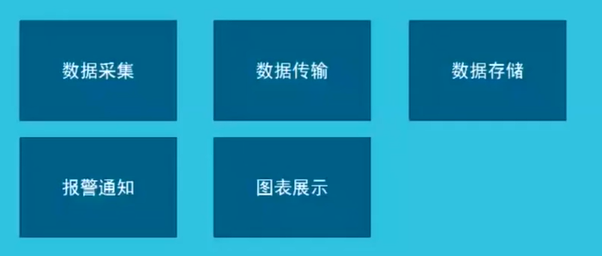

1.7.2 监控系统技术上解决什么问题

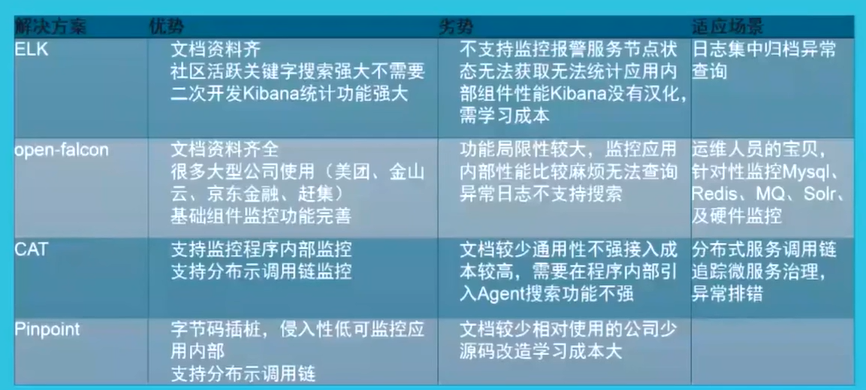

1.7.3 可选的解决方案

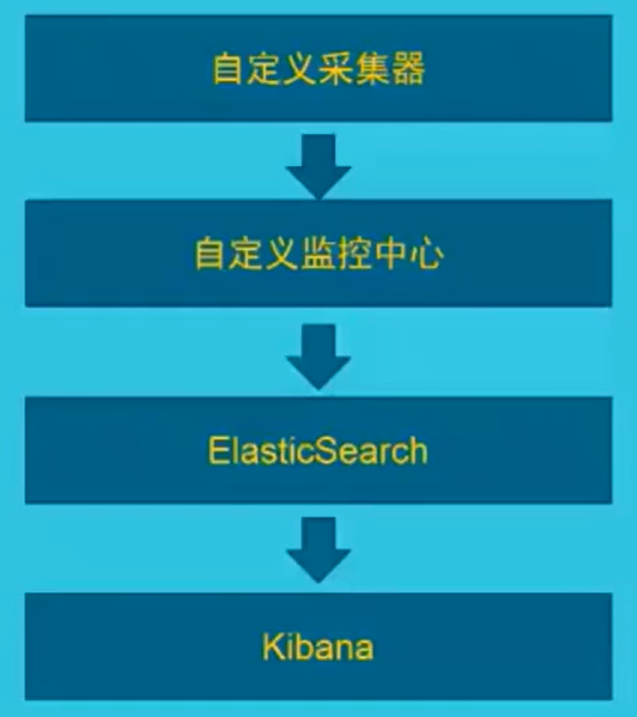

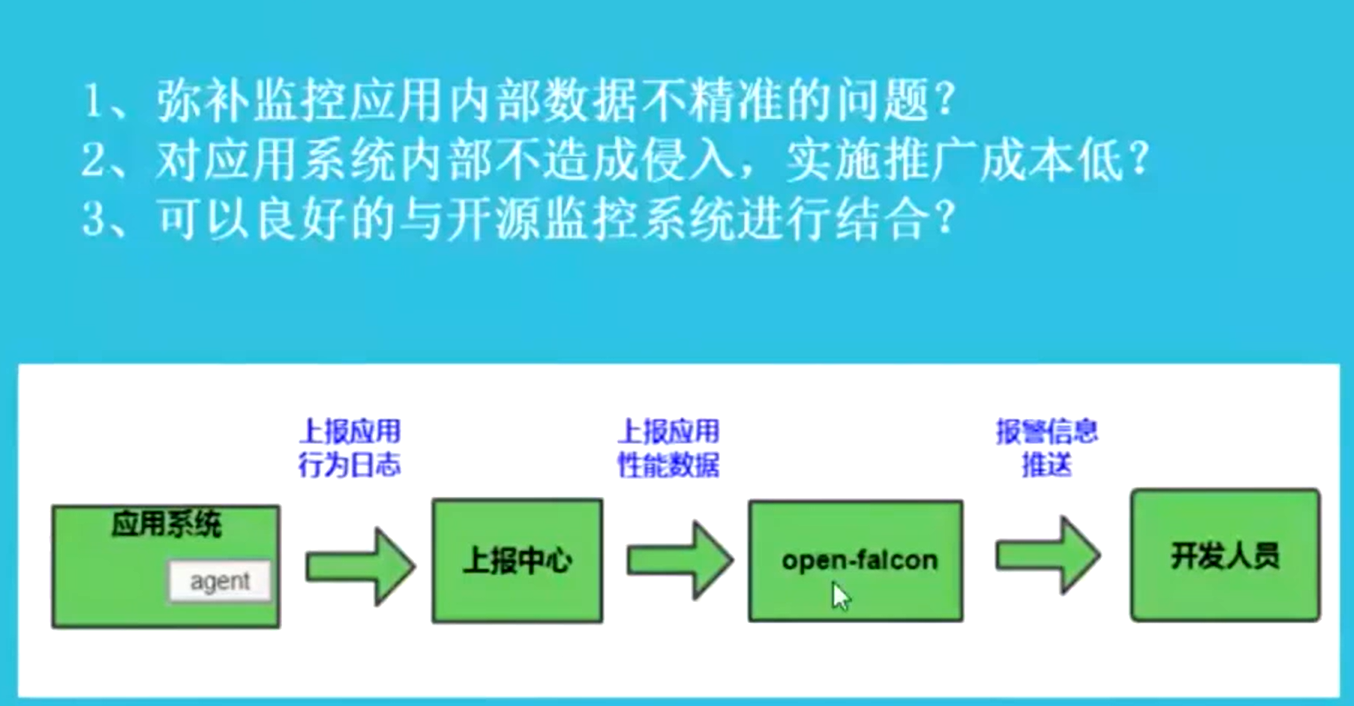

1.8 建议APM解决方案
1.9 插桩采集器的优势

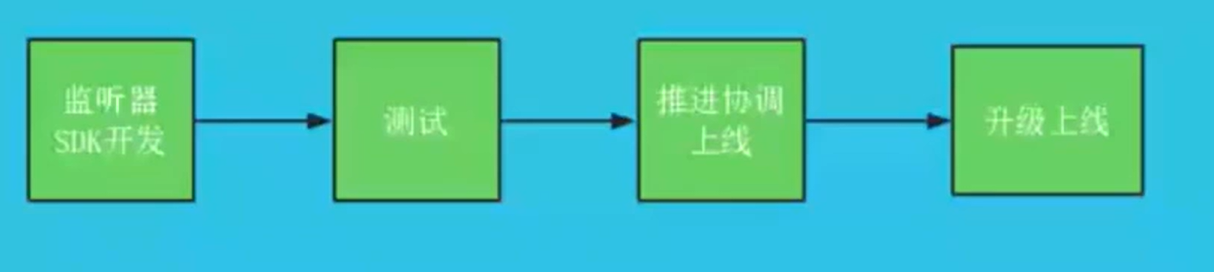

1.10 侵入式监控系统实施过程
结论:实施协调成本远大于开发成本
1.11 非侵入式监控系统实施过程
实施成本最小化,整个过程只需要运维人员配合
1.12 APM系统架构

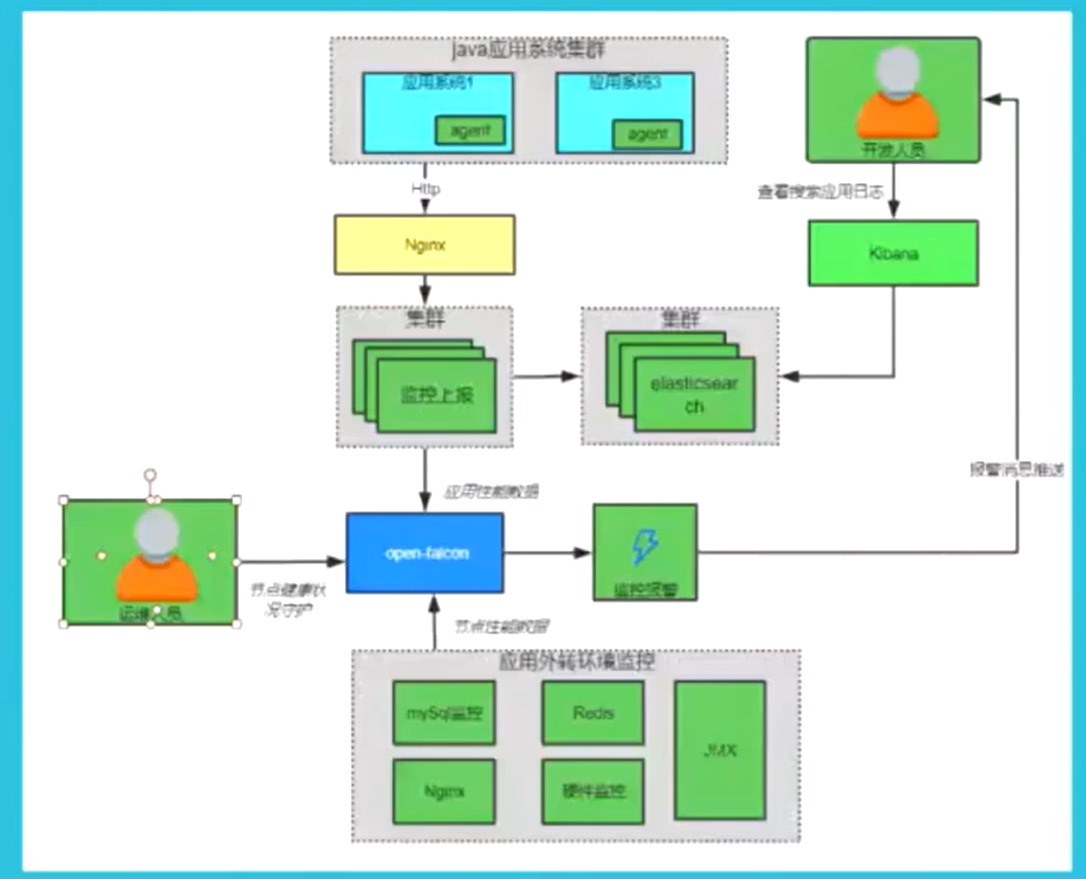

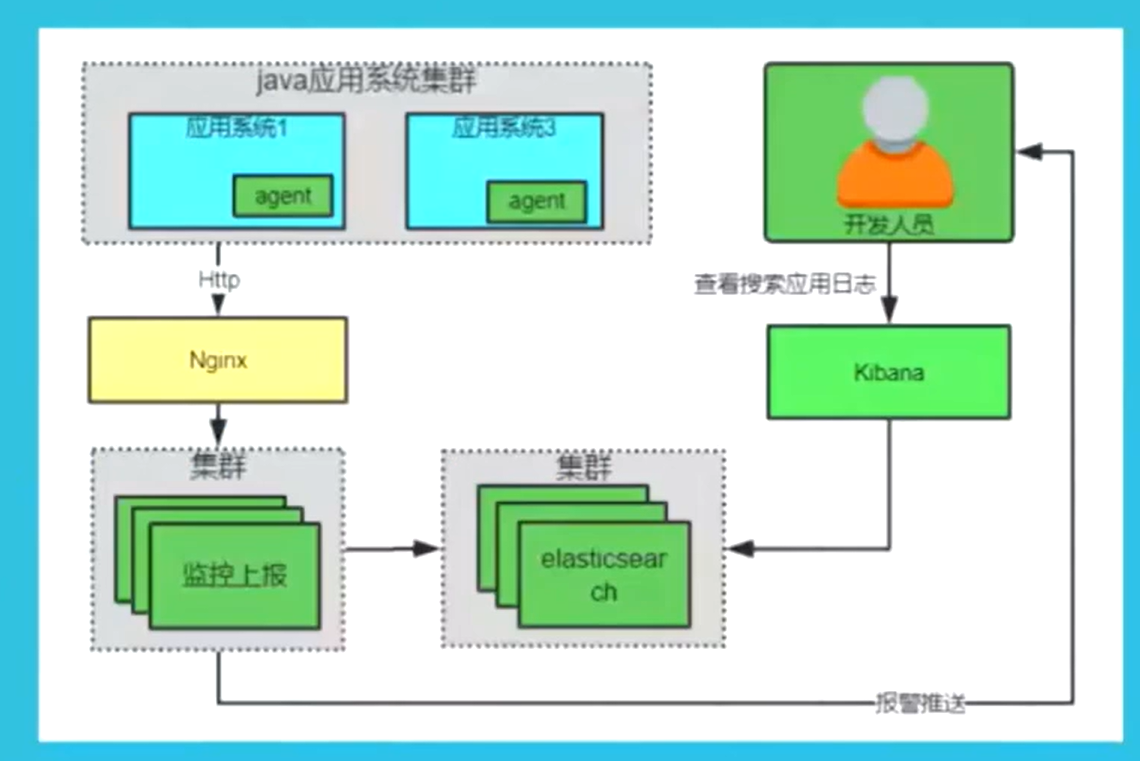

1.12.1 架构

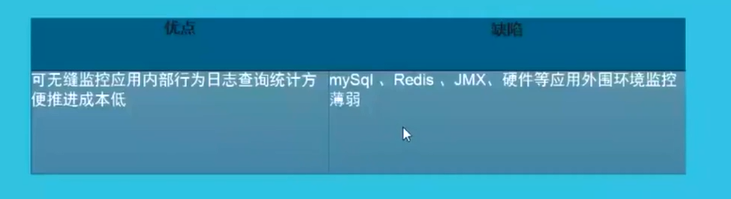

1.12.2 当前架构的优缺点
1.12.3 扩展
2 Javaagent与Javassist的使用
2.1 javaagent是什么
2.2 javaagent使用说明
2.3 javassist是什么

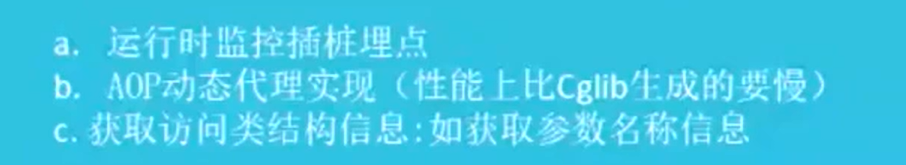

2.4 javassist的作用

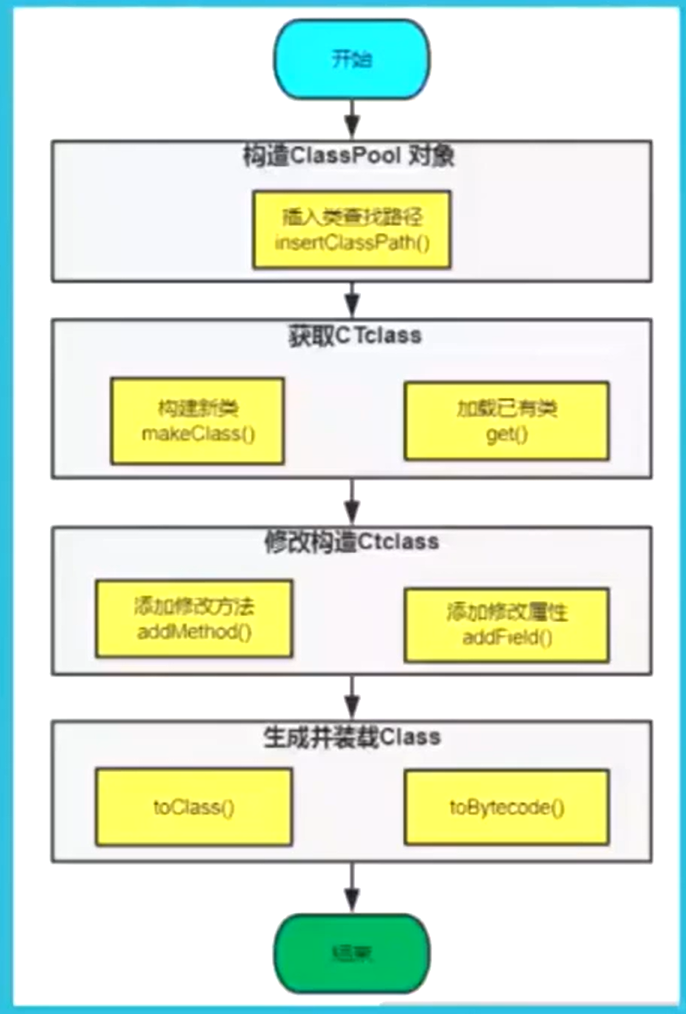

2.5 javassist的使用流程
2.6 使用javassist
2.6.1 添加依赖
<dependency>
<groupId>javassist</groupId>
<artifactId>javassist</artifactId>
<version>3.12.1.GA</version>
<type>jar</type>
</dependency>2.6.2 javassist实现新增一个类，并添加方法
package top.tec;
import javassist.*;
public class JavassitDemo {
public static void main(String[] args) throws NotFoundException, CannotCompileException, InstantiationException, IllegalAccessException {
ClassPool pool = new ClassPool(true);
pool.insertClassPath(new LoaderClassPath(JavassitDemo.class.getClassLoader()));
//创建一个类
CtClass targetClass = pool.makeClass("top.tec.hello");
targetClass.addInterface(pool.get(IHello.class.getName()));
CtClass returnType = pool.get(void.class.getName());
String mname = "sayHello";
CtClass[] parameters = new CtClass[]{pool.get(String.class.getName())};
CtMethod method = new CtMethod(returnType, mname, parameters, targetClass);
String src = "{System.out.println(\"hello \" + $1);}";
method.setBody(src);
targetClass.addMethod(method);
Class aClass = targetClass.toClass();
IHello hello = (IHello) aClass.newInstance();
hello.sayHello("小朋友");
}
public interface IHello{
void sayHello(String name);
}

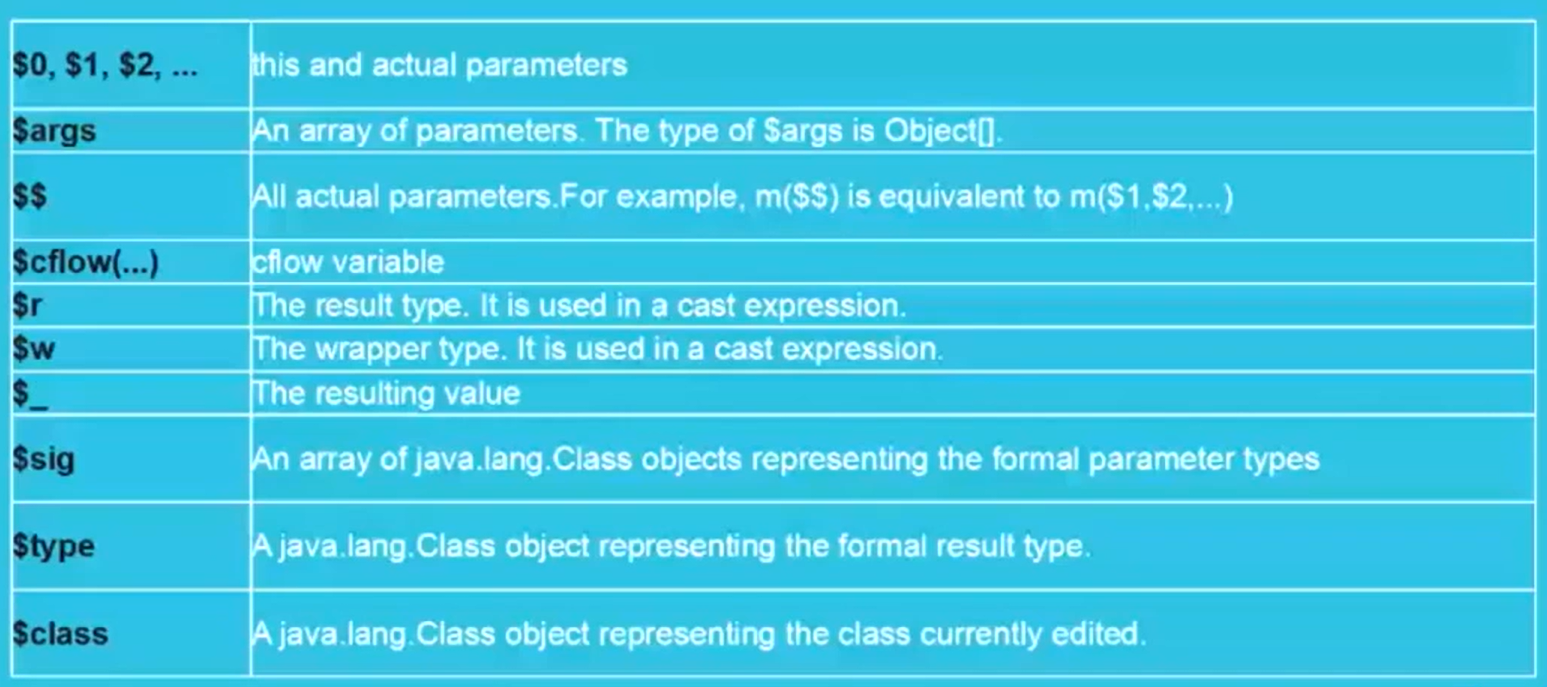

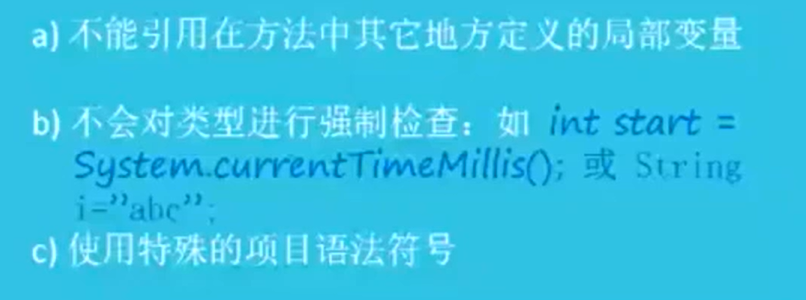

}2.7 javassist特殊符号
2.8 javassist练手(实现输入方法运行时间)
2.8.1 添加依赖
<dependency>
<groupId>javassist</groupId>
<artifactId>javassist</artifactId>
<version>3.12.1.GA</version>
<type>jar</type>
</dependency>2.8.2 工具类
package top.tec;
/**
* @author hujincheng
* @description StringUtil
* @create 2024-07-16 17:20
*/
public class StringUtil {
/**
* 添加一百个字符
*/
public static String addSleep100(int num) {
StringBuilder str = new StringBuilder();
for (int i = 0; i < num; i++) {
try {
Thread.sleep(300);
} catch (InterruptedException e) {
throw new RuntimeException(e);
}
str.append(i);
}
return str.toString();
}
public static String add100(int num) {
StringBuilder str = new StringBuilder();
for (int i = 0; i < num; i++) {
str.append(i);
}
return str.toString();
}
public static void main(String[] args) {
long begin = System.nanoTime();
addSleep100(5);
System.out.println("sleep " +(System.nanoTime()-begin));
long be = System.nanoTime();
add100(5);
System.out.println("nosleep " +(System.nanoTime()-be));
}
}2.8.3 Javassist实现对方法添加运行时间
public static void main(String[] args) throws NotFoundException, CannotCompileException {
ClassPool pool = new ClassPool(true);
CtClass ctClass = pool.get("top.tec.StringUtil");
CtMethod add100 = ctClass.getDeclaredMethod("add100");
CtMethod addSleep100 = ctClass.getDeclaredMethod("addSleep100");
CtMethod copyMethod = CtNewMethod.copy(add100, add100.getName() + "$agent", ctClass, null);
CtMethod sleepCopyMethod = CtNewMethod.copy(addSleep100, addSleep100.getName() + "$agent", ctClass, null);
ctClass.addMethod(copyMethod);
ctClass.addMethod(sleepCopyMethod);
//long begin = System.nanoTime();
//long end = System.nanoTime();
//long time = end - begin;
//System.out.println(time);
String add100Body = "{" +
" long begin = System.nanoTime();" +
" Object obj = " + add100.getName() + "$agent($$);" +
" long end = System.nanoTime();" +
" long time = end - begin;" +
" System.out.println(\"nosleep \"+time);" +
" return ($r)obj;" +
"}";
add100.setBody(add100Body);
String sleepAdd100Body = "{" +
" long begin = System.nanoTime();" +
" Object obj = " + addSleep100.getName() + "$agent($$);" +
" long end = System.nanoTime();" +
" long time = end - begin;" +
" System.out.println(\"sleep \"+time);" +
" return ($r)obj;" +
"}";
addSleep100.setBody(sleepAdd100Body);
ctClass.toClass();
StringUtil.addSleep100(5);
StringUtil.add100(5);

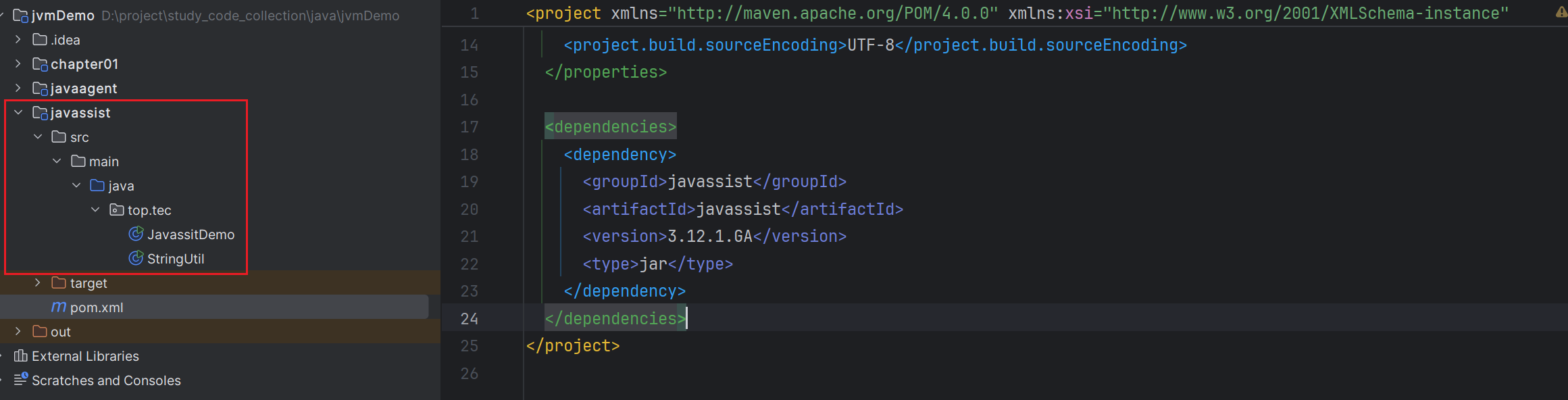

}2.8.4 目录结构
3 项目采集

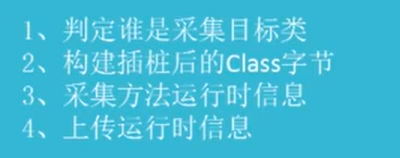

3.1 流程

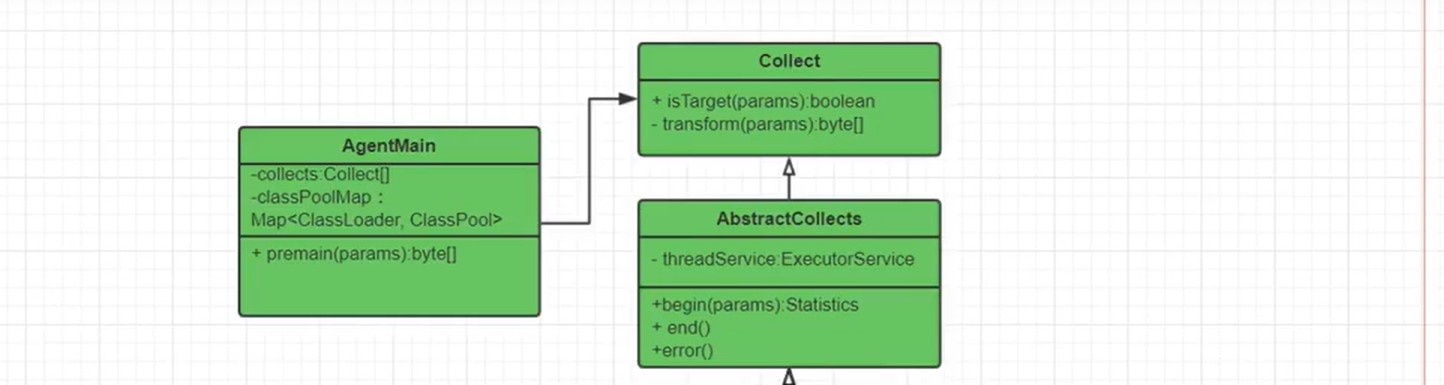

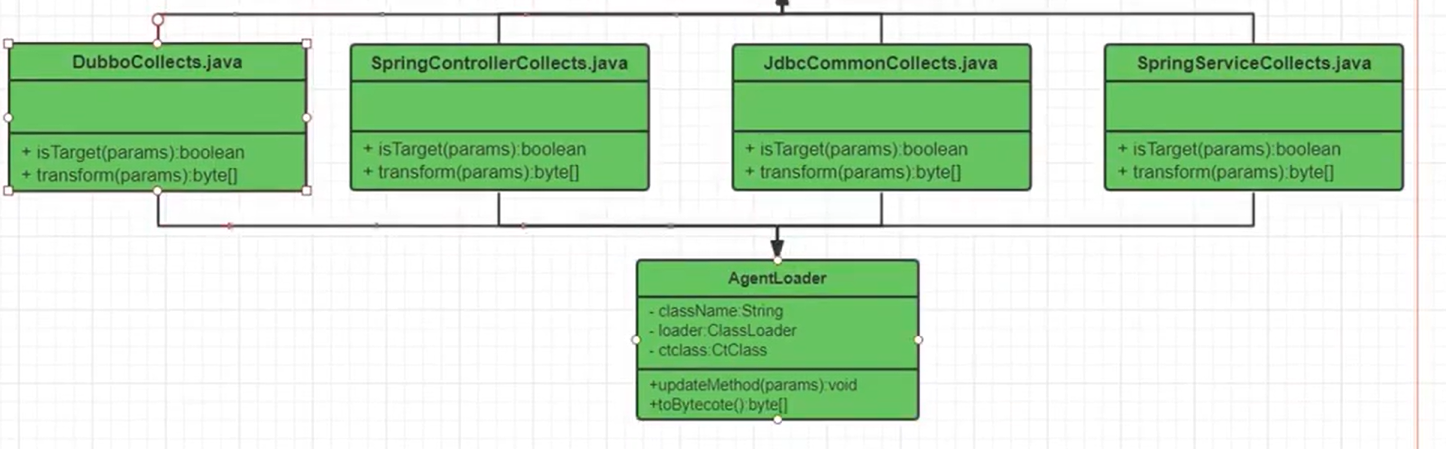

3.2 类图
3.3 Service采集
3.3.1 新建springboot项目-->添加依赖
<dependencies>
<!--字节码插装依赖 javassist-->
<dependency>
<groupId>org.javassist</groupId>
<artifactId>javassist</artifactId>
<version>3.30.2-GA</version>
</dependency>
<!--web依赖-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
</dependencies>3.3.1 编写顶层Collect采集接口，用于方便扩展采集什么地方(如Service，Controller，Redis，等)
/**
* @author hujincheng
* @description Collect 收集器
* @create 2024-07-17 10:59
*/
public interface Collect {
/**
* 判读是否为采集的目标
*/
Boolean isTarget(String className , ClassLoader loader, CtClass ctClass);
/**
* 转换
*/
byte[] transform(ClassLoader loader,String className, byte[] classFileBuffer, CtClass ctClass);
}3.3.2 实现service采集的isTarget方法，判断是否采集的是Service层
package top.tec.agent.impl;
import javassist.CtClass;
import top.tec.agent.Collect;
import java.util.Arrays;
/**
* @author hujincheng
* @description StringServiceCollect service层收集器
* @create 2024-07-17 11:02
*/
public class StringServiceCollect implements Collect {
public static StringServiceCollect INSTANCE = new StringServiceCollect();
@Override
public Boolean isTarget(String className, ClassLoader loader, CtClass ctClass) {
try {
Object[] annotations = ctClass.getAnnotations();
return Arrays.stream(annotations)
.anyMatch(annotation -> annotation.toString()
.startsWith("@org.springframework.stereotype.Service")
);
} catch (ClassNotFoundException e) {
System.err.println(e.getMessage());
}
return false;
}
@Override
public byte[] transform(ClassLoader loader, String className, byte[] classFileBuffer, CtClass ctClass) {
return new byte[0];
}
}3.3.4 测试
3.3.4.1 新增测试Service
package top.tec.test;
import org.springframework.stereotype.Controller;
import org.springframework.stereotype.Service;
/**
* @author hujincheng
* @description TestService
* @create 2024-07-17 11:07
*/
@Service
public class TestService {
public void test()
{
System.out.println("test");
}
}3.3.4.2 单例测试
@SpringBootTest
class ApmEasyAgentApplicationTests {
@Test
void contextLoads() throws NotFoundException {
String className = TestService.class.getName();
ClassLoader classLoader = TestService.class.getClassLoader();
ClassPool pool = new ClassPool(true);
CtClass ctClass = pool.get(className);
Boolean target = StringServiceCollect.INSTANCE.isTarget(className, classLoader, ctClass);
System.out.println(target);
}
}
//测试结果 -->true
//把采集的TestService的@Service改为@Controller
//测试结果 -->false
//结果正确,表示采集的目标正确
